⚡ VELLO eBike
The lightest electric folding bike, featuring the intelligent and minimalist Italian ZEHUS motor and self-charging battery. Available with a Chromoly steel or Titanium frame and with belt or chain drive.
Please contact me if you have any questions or need to test it.
4-in-1 technology. Motor, integrated battery, 4 sensors and Bluetooth connection. Speed up to 25km/h with the 250W motor and a range of 20 to 50km. The motor provides support whenever needed. The regenerative system uses excess energy to recharge the battery. If the screen is GREEN, energy is being consumed. If it is BLUE, the battery recovers energy.
Through the app, available for Android and iOS (including smartwatches), you can set modes, configure the motor and other accessories (such as the remote control), lock the wheel, and view all usage information. Download it here
General Specifications

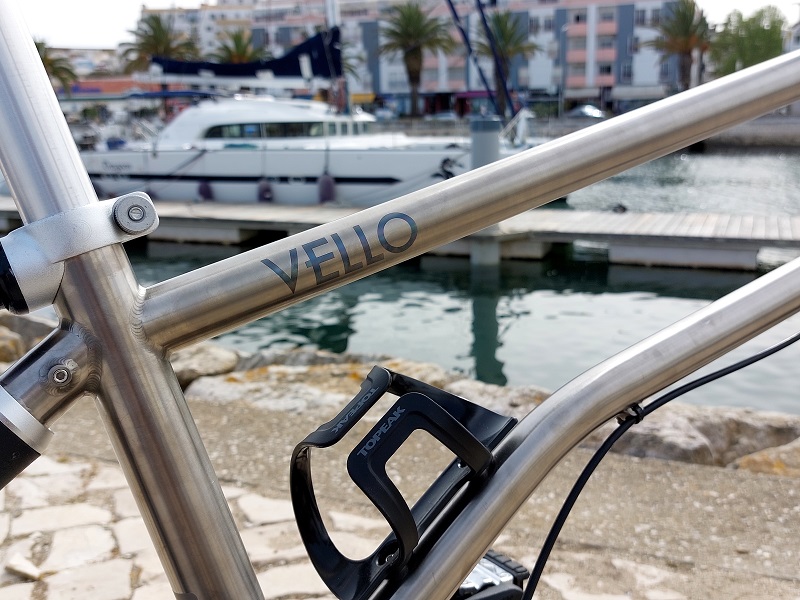

Frame, fork and chainstay in 4130 chromoly steel or Titanium frame
Rear suspension and magnetic system
Hydraulic brakes
Seatpost: Satori 30.9 mm x 500 mm
Detachable handlebars
1 1/8" short stem
Folding pedals in full aluminum

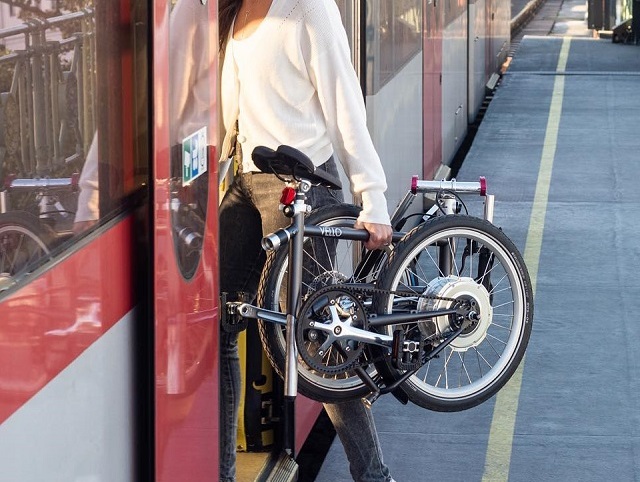

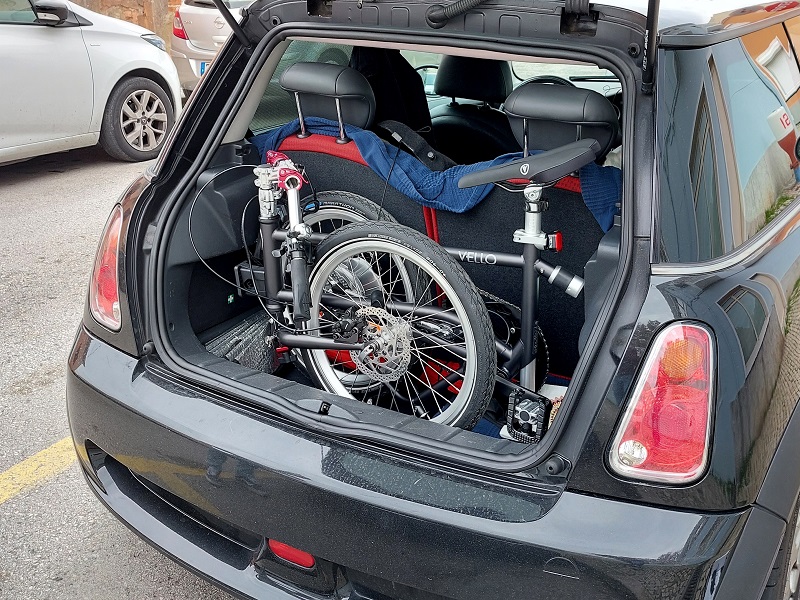

Folded size: H: 57 cm x L: 79 cm x W: 29 cm
Maximum permissible weight: 125 kg
ZEHUS 40NM motor
Charging time: 100% in 3h or self-charging mode
Speed: 25 km/h or up to 40 km/h manually with gears
Battery life: > 1,000 charge cycles (replaceable after a few years)
Range: approx. 20-50 km in turbo mode, or unlimited with auto-charging and eco mode.
Versions:
AUTOMATIC
Gates Carbon CDX Belt
Anti-puncture tires Schwalbe Marathon 40-406 (Chromoly) or Kojak 35-406 (Titanium)
Approx. weight: 15kg (Chromoly) 14kg (Titanium)
GEARS
3 external gears, chain, 54T chainring and 11T, 16T, 22T cassette
Approximate weight: 17kg (Chromoly) 16kg (Titanium)
SCHLUMPF DRIVE
-Schlumpf Speed Drive (AUTOMATIC)
For fast riding above 25 km/h with a comfortable cadence. The gears are internal in the bottom bracket and it has a 1:1.65 gear ratio
-Schlumpf Mountain (AUTOMATIC & GEARS)
Recommended for climbs with an incline greater than 17%, 2.5:1 ratio.
TIRES
You can choose which tires to install if you don't want the original ones. The cost includes the pair and necessary mounting, including new inner tubes in some cases and various adjustments to the bicycle
EXTRAS
Although not mandatory for controlling the motor (this can be done with the phone app), it's an interesting and more practical extra because it's always within reach. This controller allows you to activate regenerative braking, increase or decrease power, turn the system on and off, and switch between assistance levels. And you can see the battery level
The bag for transporting and protecting the Vello
Special mudguards for the Vello with a magnetic system so they don't interfere with folding.
Magnetic Lights
5 different light modes for extra high visibility. USB rechargeable and 100% waterproof. Front light: 100 lumens, rear light: 50 lumens.
Options for carrying loads in the front, which do not interfere with steering, improve balance and can be detached when not in use by simply pressing a button.
A waterproof frame bag. It can hold a water bottle, lock, and other essentials without adding weight to the bicycle.
A minimalist rear rack for Ortlieb panniers or top cases. Does not increase the overall size of the VELLO when folded.
The most robust system for mobile phones. It can be used with a dedicated case or the universal adapter.
For carrying a children aged 2 to 6 years or weighing up to 25kg safely and without adding significant weight or instability. Folds up and includes a carrying bag.
The perfect U-lock for short stops or trips. For longer stops on a daily basis, the Litelok X1 angle-grinder proof lock is recommended

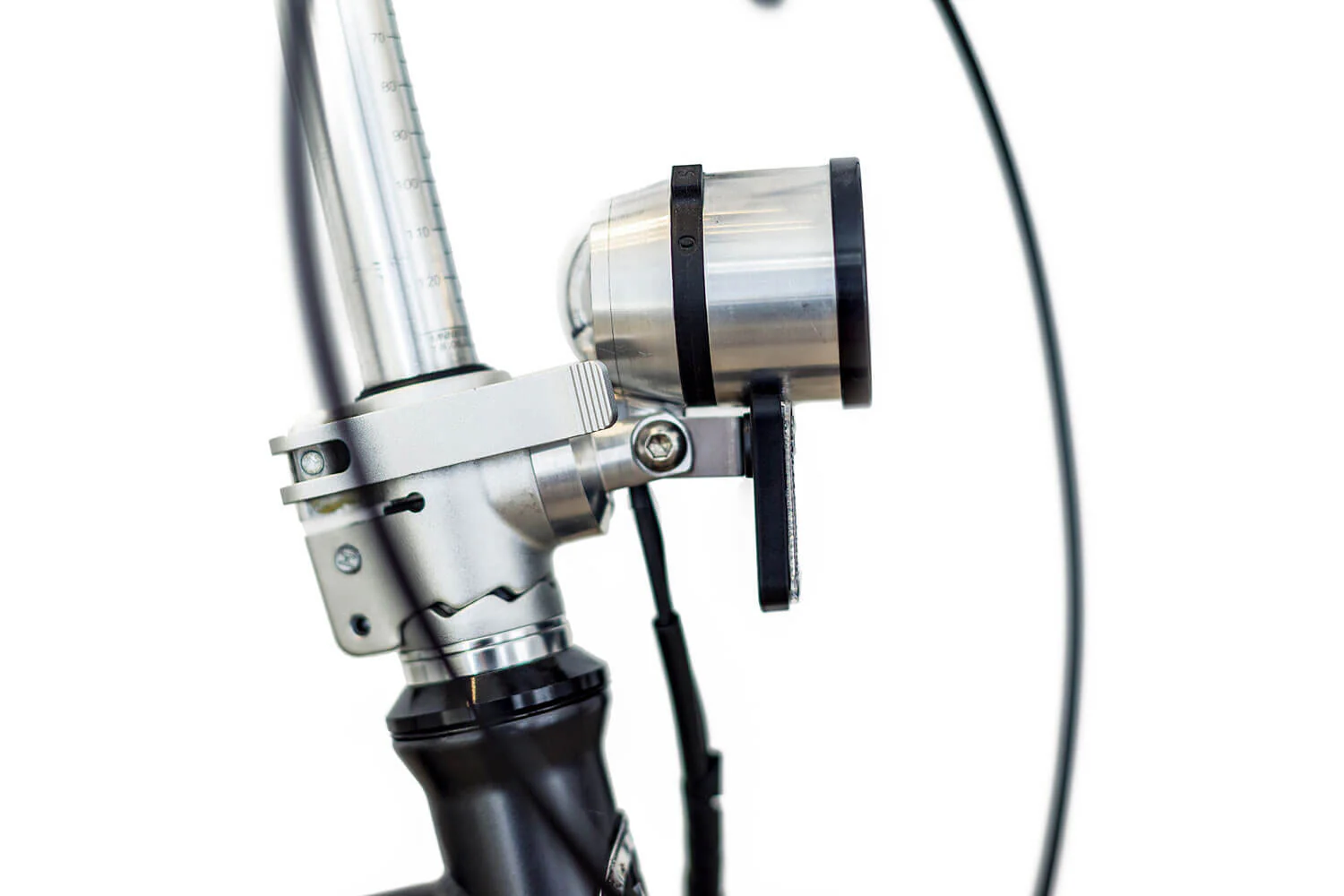

Front and rear lighting generated by a SON dynamo, adding only 450g.
