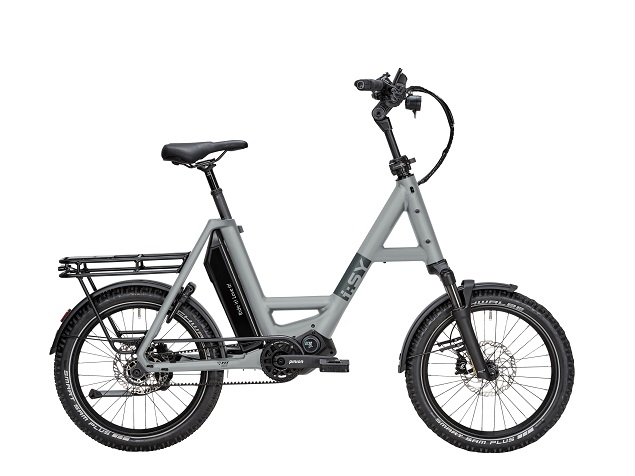

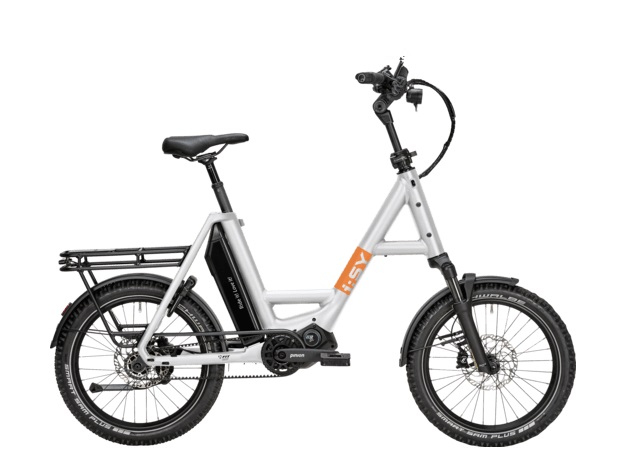

⚡ i:SY Adventure P12 (Pinion drive)

We combine our power pack consisting of the M.G.U. from PINION with a whopping 85 Nm and 800 Wh battery power with the all-terrain Adventure equipment. Suspension fork, deep tread tyres and suspension dropper seatpost make the i:SY P12 Adventure a bike for every situation. Whether it's a shortcut through the forest on the way to work or a propper cycling holiday in the mountains, the i:SY P12 Adventure can do it all. Thanks to the new frame shape, the quick release is already integrated, making it even easier to adjust the saddle height. In combination with the height-adjustable handlebar, thanks to the Speedlifter Twist, the i:SY is particularly easy to stow away, e.g. for the next longer trip in combination with the caravan.

• PINION M.G.U. - Powerful middle drive unit with 85 Nm and integrated 12-speed gearshift
• Deep tread tyres, suspension fork and suspension dropper seat post
• 800 Wh - Largest battery capacity within the i:SY family

Equipada com um motor Pinion de 85Nm com apoio até 600%, bateria de 800Wh, transmissão Pinion E1.12 de 12 velocidades, correia Gates e travões hidráulicos Pinion E1.12

O Pinion pesa apenas 4kg e oferece 85 Nm, mas são aplicados até 160Nm na roda traseira, nas mudanças de 1 a 4

Display largo, confortável visualmente, operado por um comando moderno e robusto. Tem a função de navegação quando está ligado à app no telefone

A app oferece todas as informações sobre a e-bike e os componentes instalados. Previsão de autonomia para os diversos níveis de suporte. Navegação prática no mapa ou integração do serviço Komoot, acesso aos passeios planeados e concluídos, navegação diretamente na app ou passo a passo no Display, visualização detalhada das rotas Komoot. Encontra a minha E-Bike: transmissão de localização com última conexão à app

Um novo suporte frontal compatível com Klickfix pode ser adquirido como extra

Motor

FIT PINION MGU E1.12

Motor support

up to 25 km/h

Battery Capacity (Wh)

800 Wh

Display

FIT Comfort, 3.5 Inch

Frame Material

Aluminium

Fork

SR Suntour Mobie34-CGO Boost DS 15AH2-110 1 1/4-1.5” 20” 60mm

Travel fork

60 mm

Derailleur Type / Gears

Bottom bracket gearbox | 12 speed

Derailleur Shifter

FIT Remote Basic E-Shift

Crankset

i:SY E-Bike crank

Cassette

24T

Brake

Hydraulic disc brake

Front Brake

Magura MT-C, 4-piston

Rear brake

Magura MT-C, 2-piston

Brake lever

3-finger brake lever

Brake lever rear

3-finger brake lever

Brake disc

180 mm

Brake disc rear

180 mm

Rim

Ryde Disc30

Rim rear

Ryde Disc30

Hub (Frontwheel)

SHIMANO HB-TC500-15-B

Rear hub

FORMULA EHL-51, 6-bolt, 12mm TA

Spokes

32x Niro 2.0 mm

Tyres

SCHWALBE Smart Sam Plus

Tyre size (inch)

20 x 2,35

Tyre size (ETRTO)

60-406

Handlebar

i:SY handlebars 20°

Handles

ERGON GP10 ERGONomic handles

Stem

integrated 55mm, slide 35 mm

Headset

i:SY headset

Saddle

ZECURE COMFORT, hydrofoam, size M

Seat Post

Limotec A3Z dropper post

Seatclamp

i:SY 2.0 quick release integrated

Pedals

i:SY Anti-slip Folding Pedal

Front Light

FUXON FF-100EB, 100 Lux LED with high beam

Rear Light

FUXON R-Glow S LED Rear Light

Stand

PLETSCHER Kickstand Comp40 Flex

Mudguards

SKS Bluemels 20 inch, width 69mm

Rack

i:SY Carrier 2.0 MonkeyLoad Ready

chainguard

i:SY chain guard

Frame lock

Abus i:SY-Set XPlus keyed alike, consisting of battery and frame lock (BLO FIT IT1 XPLUS + 5755L NR)

Wheel size

20 inch

Frame Size

47 cm

Manufacturer colour

pepper black

Permissible Total Weight

150 kg

Weight **

25.7 kg

Charger

FIT Charger 3 Ah
